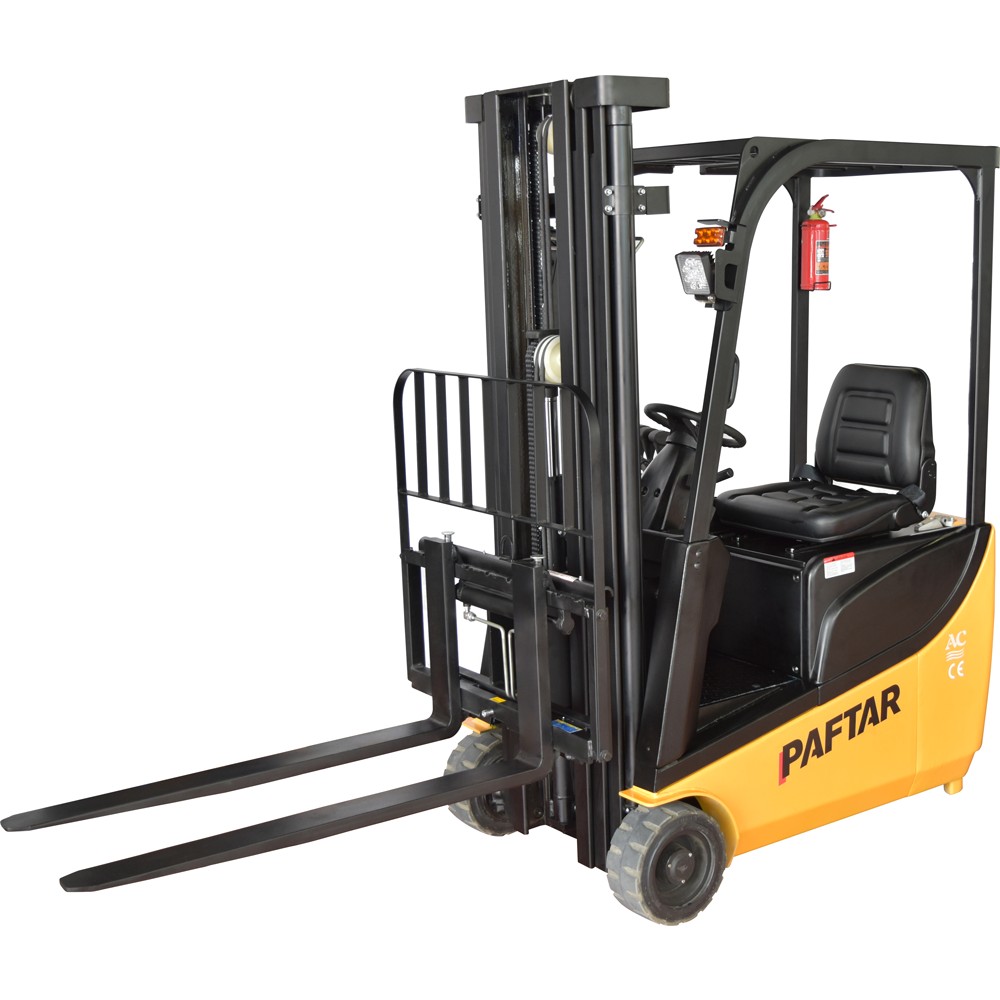

EF1348 Electrical Forklift
PRODUCT FEATURES
EF1348 Akülü Forklift
TECHNICAL SPECIFICATIONS
-
Model
EF1348
-
Type
Elektrikli
-
Operation
Forklift
-
Lift Rated Capacity
Q (t)
1,3
-
Center Height
c (mm)
500
-
Axle Centre To Fork Face
x (mm)
235
-
Wheel Base
y (mm)
1090
-
Service Weight with Battery
kg
2480
-
Wheels Type
PU
-
Driving Wheel Size
Φ×w(mm)
Φ250×127
-
Bearing Wheel Size
Φ×w(mm)
Φ305×127
-
Wheels, Number Front/Rear (x = driven)
2/1x
-
Track width
b10 (mm)
783
-
Mast/Fork Carriage Tilt, Forward/Backward
a/b (°)
2/5
-
Height Of Mast, Lowered
h1 (mm)
1995
-
Freelift
h2 (mm)
135
-
Hoisting Height
h3 (mm)
4800
-
Extended Mast Height
h4 (mm)
5700
-
Height Of Overhead Guard (cabin)
h6 (mm)
1980
-
Height Of Seat/Stand-On Platform
h7 (mm)
960
-
Towing Coupling Height
h10 (mm)
450
-
Overall length
l1 (mm)
2530
-
Total Weight
kg
2550
-
Length To Fork Face
l2 (mm)
1580
-
Overall width
b1/ b2 (mm
917
-
Fork Size
s/e/l (mm)
35/100/950
-
Fork Width
b3 (mm)
220-750
-
Size of Fork
m1 (mm)
90
-
Max.Ground Clearance
m2 (mm)
90
-
Aisle Width With Pallet 1000 x 1200 Across Forks
Ast (mm)
2930
-
Aisle Width With Pallet 800 x 1200 Along Forks
Ast (mm)
3038
-
Min.Turning radius
Wa (mm)
1348
-
Travel Speed,Laden/Unladen
(km/h)
6.2/7.2
-
Lifting Speed (Laden/Unladen)
(mm/s)
135/215
-
Lowering Speed (Laden/Unladen)
(mm/s)
238/225
-
Incline Andle (Laden/Unladen)
(%)
5/10
-
Service Brake
Electromagnetic Brake
-
Drive Motor
(kW)
2.5
-
Lift motor rating at S3 15%
(kW)
4.5
-
Battery
(V/Ah)
24/350
-
Battery weight (± 5%)
(kg)
320
-
Power consumption according to VDI cycle
(mm)
645/292/560
-
Type Of Drive control
AC
-
Sound Level
(dB(A))
80
