Pallet Truck

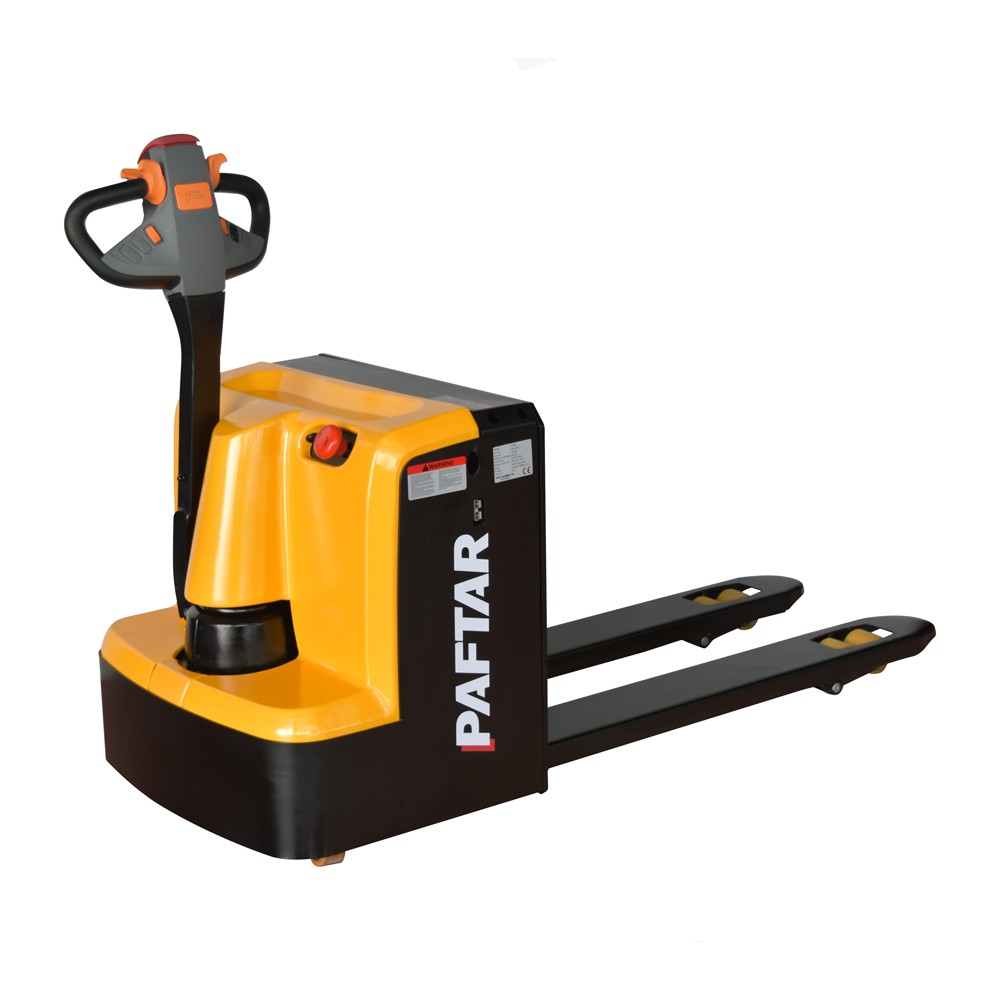

ET20E Akülü Transpalet
PRODUCT FEATURES
ET20E Akülü Transpalet
TECHNICAL SPECIFICATIONS
  • Lift Rated Capacity Q (t) 2
  • Load Centre c (mm) 600
  • Axle Centre To Fork Face x (mm) 931
  • Wheel Base y (mm) 1324
  • Service Weight with Battery kg 333
  • Wheels Type PU
  • Driving Wheel Size Φ×w(mm) Φ210×70
  • Bearing Wheel Size Φ×w(mm) Φ80×70
  • Additional Wheels(dimensions) Φ×w(mm) Φ100×40
  • Wheels, number front/rear (x = driven) 1x+2/4
  • Track width b11 (mm) 380/525
  • Hoisting Height h3 (mm) 200
  • Overall height(With handle h14 (mm) 730/1165
  • Minimum Fork Height h13 (mm) 85
  • Overall length l1 (mm) 1708
  • Length To Fork Face l2 (mm) 558
  • Overall Width b1/ b2 (mm) 700
  • Fork Size s/e/l (mm) 50/160/1150
  • Width Over Forks b5 (mm) 560/685
  • Min.Ground Clearance m2 (mm) 35
  • Aisle Width With Pallet 1000 x 1200 Across Forks Ast (mm) 1909
  • Aisle Width With Pallet 800 x 1200 Along Forks Ast (mm) 1959
  • Min.Turning radius Wa (mm) 1490
  • Travel Speed,Laden/Unladen (km/h) 4.2/4.5
  • Lifting Speed (Laden/Unladen) (mm/s) 20/26
  • Lowering Speed (Laden/Unladen) (mm/s) 33/21
  • Incline Andle (Laden/Unladen) (%) 3/10
  • Service Brake Elektromanyetik Fren
  • Drive Motor (kW) 0,75
  • Lift motor rating at S3 15% (kW) 0,8
  • Battery (V/Ah) 2×12/100
  • Battery weight (± 5%) kg 54
  • Type Of Drive control DC
  • Sound Level (dB(A)) ≤70
